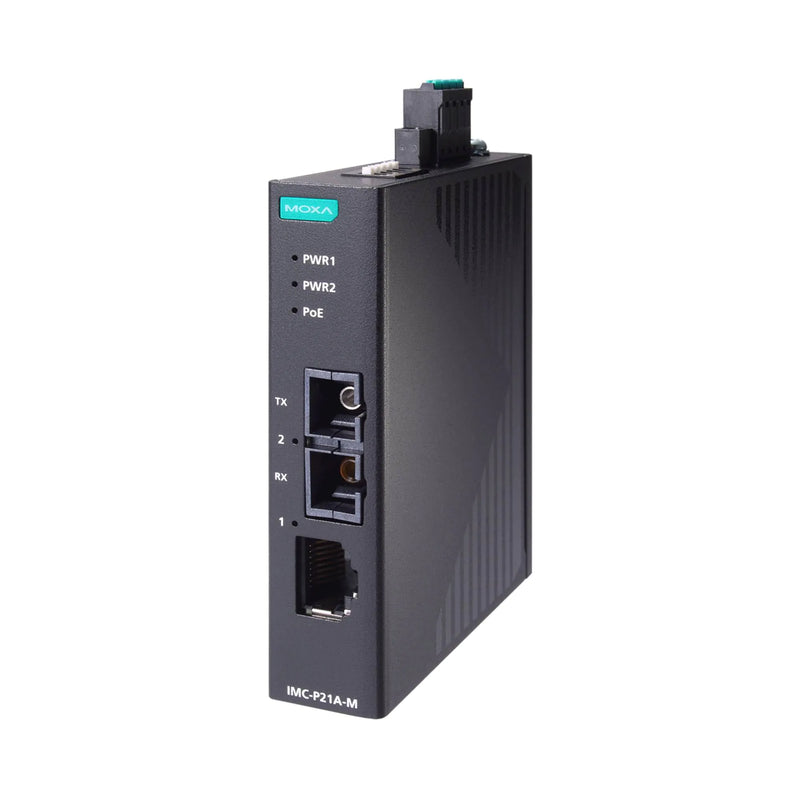

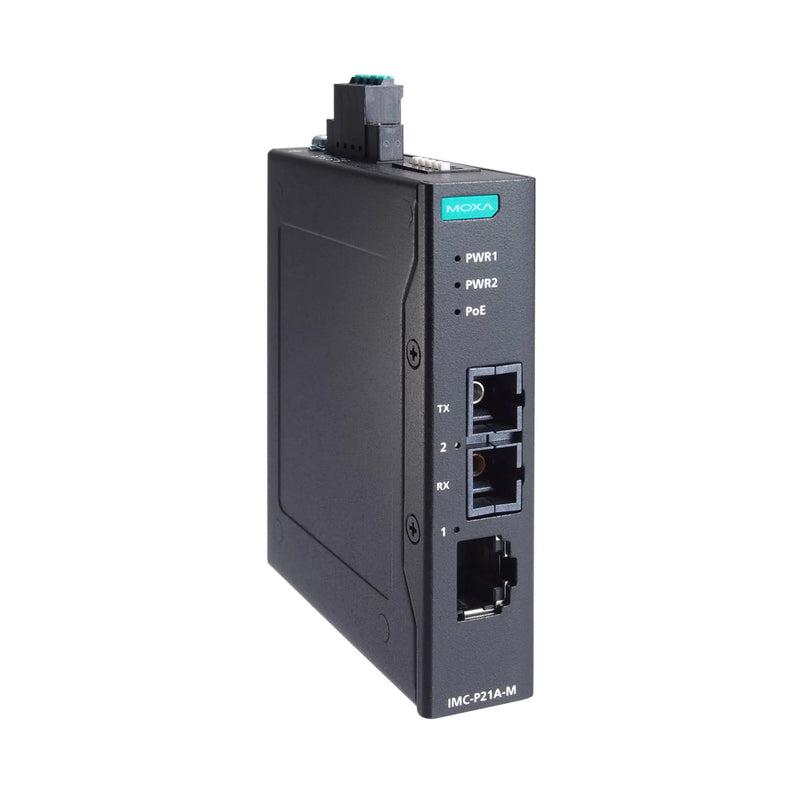

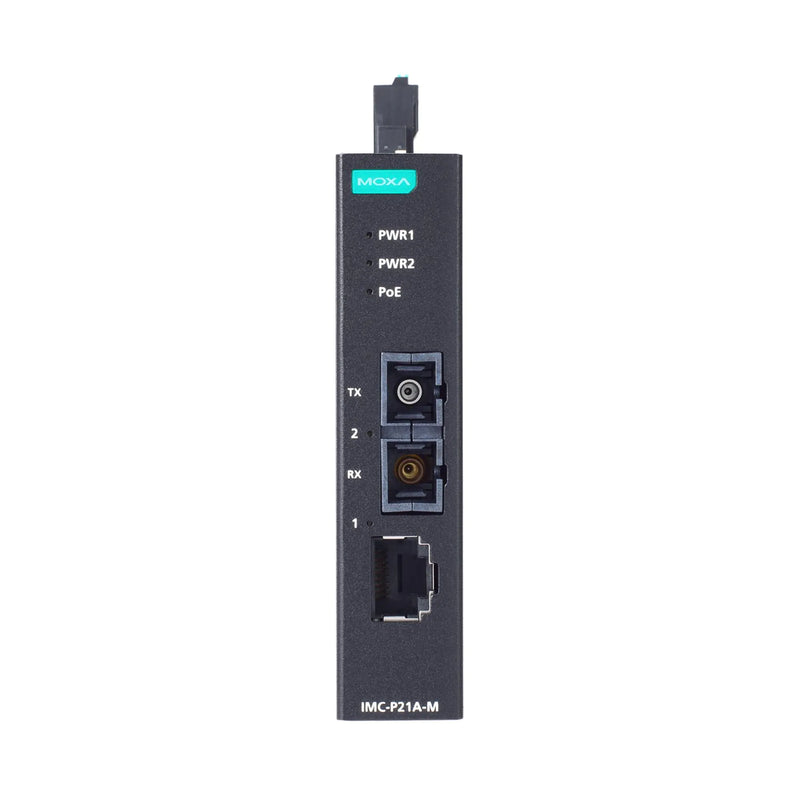

Moxa IMC-P21A-G2-M-SC Fast Ethernet-to-fiber media converter
We can help confirm compatibility before you place your order.
30-day returns on eligible orders.
* warranty & support included
Moxa IMC-P21A-G2-M-SC Fast Ethernet-to-fiber media converter
PoE+ industrial 10/100Base-T(X) to 100Base-FX media converter, multi-mode port with SC connector, -10 to 60°C operating temperature
The IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters are engineered for reliable and stable media conversion from 10/100BaseT(X) to 100Base-FX. As power source equipment (PSE), these converters can directly power powered devices (PDs), eliminating the need for extra wiring.
In standard mode, the IMC-P21A-G2 provides up to 30 watts of power through its PoE+ port, with the capability to deliver up to 36 watts for demanding industrial PoE devices. This includes weatherproof IP surveillance cameras equipped with wipers and heaters, high-performance wireless access points, and IP phones. With options for SC or ST fiber ports, these converters ensure high EMI immunity and can transmit data over distances of up to 40 km to the control center.
The IMC-P21A-G2 converters come packed with useful features, including PoE diagnostics, Link Fault Pass-through, store-and-forward mode, and pass-through mode. They support IEEE 802.3/802.3u/802.3x standards with 10/100M and MDI/MDI-X autosensing, making them a comprehensive solution for your industrial Ethernet networks.
Key Features:
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
- Up to 36 W output on the PoE+ port
- Supports store-and-forward mode and pass-through mode
- -10 to 60°C operating temperature range
- Redundant dual DC power inputs
